HF型冲压外圈滚针离合器

型号： P5F48D20A1D993

销售价：
会员价： 最低起 更多会员价
市场价：
商品评分： (共0人评论)

数量： -+
我要询价

商品详情

品牌：
所属分类：滚柱式单向离合器
商品编号：G5F48D20A1D95C

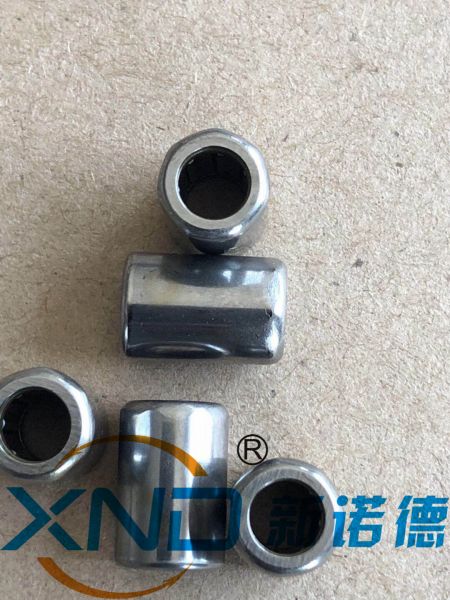

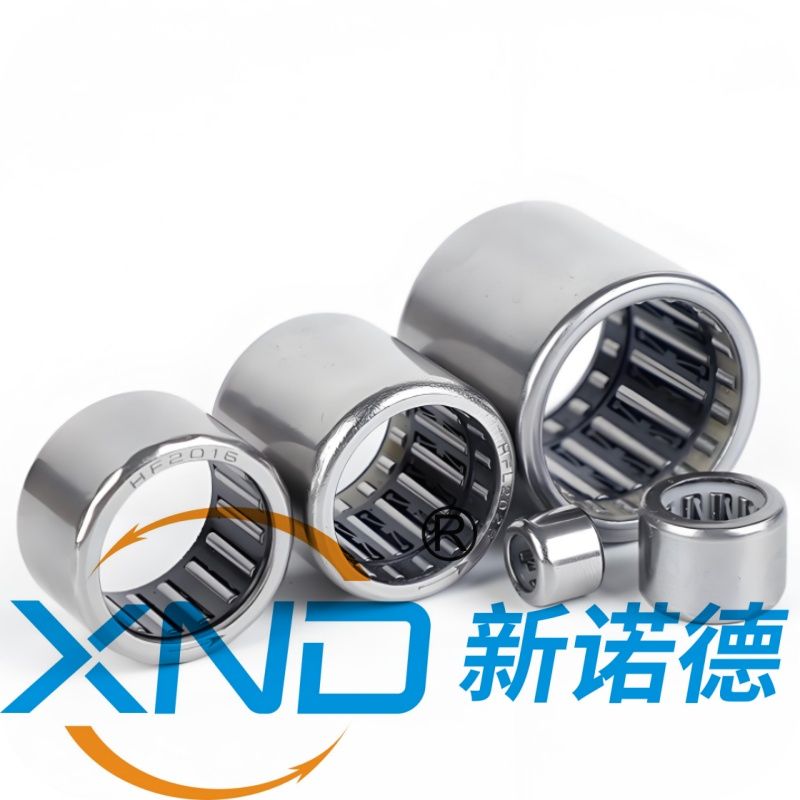

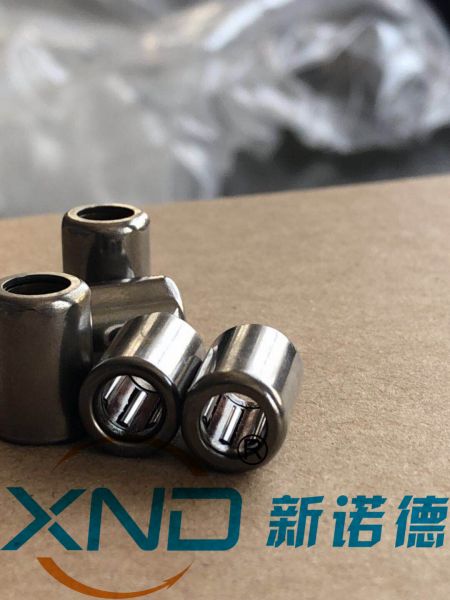

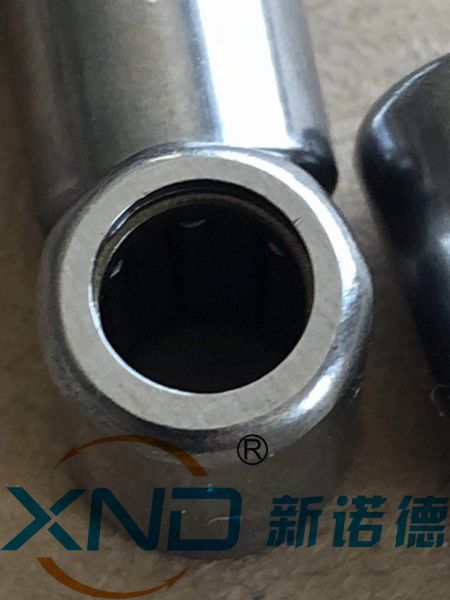

<div style="text-align: center;"><font face="黑体" size="6" color="#ff0000">HF型 冲压外圈滚针离合器</font></div><div><p style="text-align: center;">
<img src="http://xinnuode.com/public/images/d2/d4/4c/916d3d23ecf4c734b5a60867aede88b6fc860ff5.jpg?1598607789#h"></p>
<p style="text-align: left;"><font size="4">HF型冲压外圈滚针离合器是一种外星轮式超越离合器。滚针是锁紧元件。它由薄壁冲压外圈、保持架、镶嵌于保持架中的异形弹簧和装入保持架中锁紧元件滚针组成的。异形弹簧使滚针始终贴紧在冲压外圈内径偏心圆弧工作面上，又因滚针的质量很小，所以允许较高的转换频率，并且有高的反向锁紧精度。常用于印刷机械、包装机械、纺织机械、食品机械、家用电器、轻工机械及测试设备等。常用转矩
0.34N · m - 121 N · m ，适用于高转速，一般为 3900 - 34000r/min 。选用这种离合器用户自己的轴的硬度要达到 HRC58 -
62 ，而且尺寸精度和形位公差要达到要求。</font></p>
<table class="tb_2" cellspacing="0" cellpadding="0" width="553" border="0" style="text-align: center;">
<tbody>
<tr>
<td class="hei1_9" colspan="7"> </td>
<td class="bai_10" colspan="3"> </td></tr>
<tr>
<td class="hei1_9" colspan="7">HF 型冲压外圈滚针离合器基本参数和主要尺寸</td>
<td class="bai_10" colspan="3">长度单位:mm</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="28">序<br/>号</td>
<td class="tb_line4" rowspan="2" width="94">型号</td>
<td class="tb_line2" height="20" width="69">公称<br/>转矩</td>
<td class="tb_line4" height="20" colspan="2">极限转速<br/>n(r/min)</td>
<td class="tb_line4" colspan="3">外形尺寸</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="50">轴径</td>
<td class="tb_line4" rowspan="2" width="47">
<p align="center">质量<br/>m(g)</p>
</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="47">轴 </td>
<td class="tb_line4" bgcolor="#ff7f00" width="40">外圈</td>
<td class="tb_line4" width="58">内径d</td>
<td class="tb_line4" width="61">外径D</td>
<td class="tb_line4" width="59">宽度L</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">HF0406</td>
<td class="tb_line" height="22">0.34</td>
<td class="tb_line5" height="22">34000</td>
<td class="tb_line" height="22">14000</td>
<td class="tb_line5" height="22">4</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">4</td>
<td class="tb_2" height="22">1</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">HF0612</td>
<td class="tb_line" height="22">1.76</td>
<td class="tb_line5" height="22">23000</td>
<td class="tb_line" height="22">13000</td>
<td class="tb_line5" height="22">6</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">6</td>
<td class="tb_2" height="22">3</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">HF0812</td>
<td class="tb_line" height="22">3.15</td>
<td class="tb_line5" height="22">17000</td>
<td class="tb_line" height="22">12000</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">8</td>
<td class="tb_2" height="22">3.5</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">HF1012</td>
<td class="tb_line" height="22">5.3</td>
<td class="tb_line5" height="22">14000</td>
<td class="tb_line" height="22">11000</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">10</td>
<td class="tb_2" height="22">4</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">HF1216</td>
<td class="tb_line" height="22">12.2</td>
<td class="tb_line5" height="22">11000</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">12</td>
<td class="tb_2" height="22">11.6</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">HF1416</td>
<td class="tb_line" height="22">17.3</td>
<td class="tb_line5" height="22">9500</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">14</td>
<td class="tb_2" height="22">13</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">HF1616</td>
<td class="tb_line" height="22">20.5</td>
<td class="tb_line5" height="22">8500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line5" height="22">22</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">16</td>
<td class="tb_2" height="22">14</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">HF1816</td>
<td class="tb_line" height="22">24.1</td>
<td class="tb_line5" height="22">7500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line5" height="22">24</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">18</td>
<td class="tb_2" height="22">15.5</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">HF2016</td>
<td class="tb_line" height="22">28.5</td>
<td class="tb_line5" height="22">7000</td>
<td class="tb_line" height="22">6500</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">26</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">20</td>
<td class="tb_2" height="22">17</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">HF2520</td>
<td class="tb_line" height="22">66</td>
<td class="tb_line5" height="22">5500</td>
<td class="tb_line" height="22">5500</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line" height="22">25</td>
<td class="tb_2" height="22">30.9</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">11</td>
<td class="tb_line" height="22">HF3020</td>
<td class="tb_line" height="22">90</td>
<td class="tb_line5" height="22">4500</td>
<td class="tb_line" height="22">4500</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">37</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line" height="22">30</td>
<td class="tb_2" height="22">36</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">HF3520</td>
<td class="tb_line" height="22">121</td>
<td class="tb_line5" height="22">3900</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">3900</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">42</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line" height="22">35</td>
<td class="tb_2" height="22">40</td></tr></tbody></table><br/></div><div style="text-align: center;">
