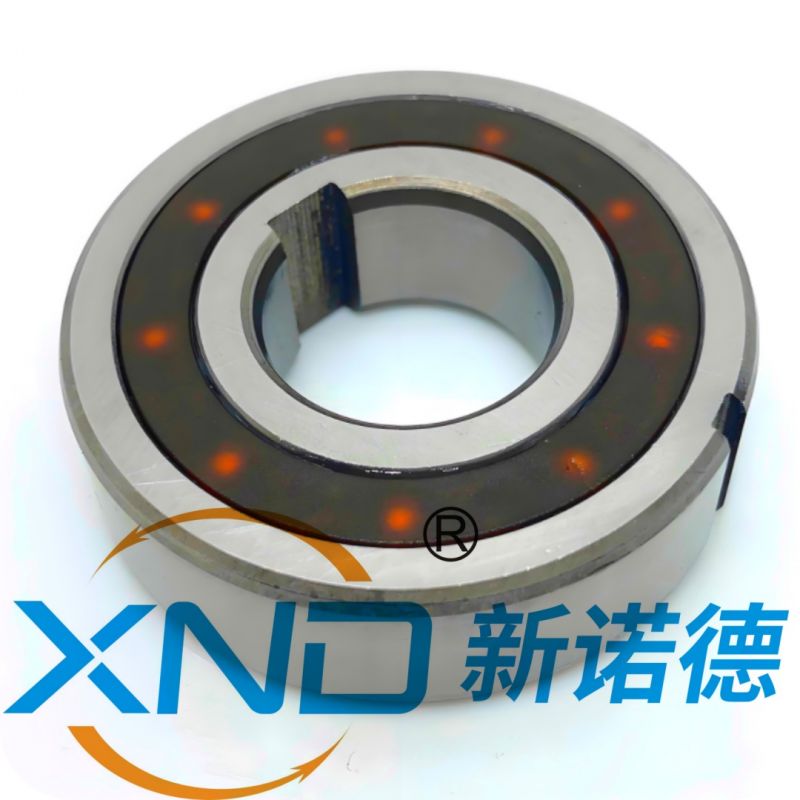

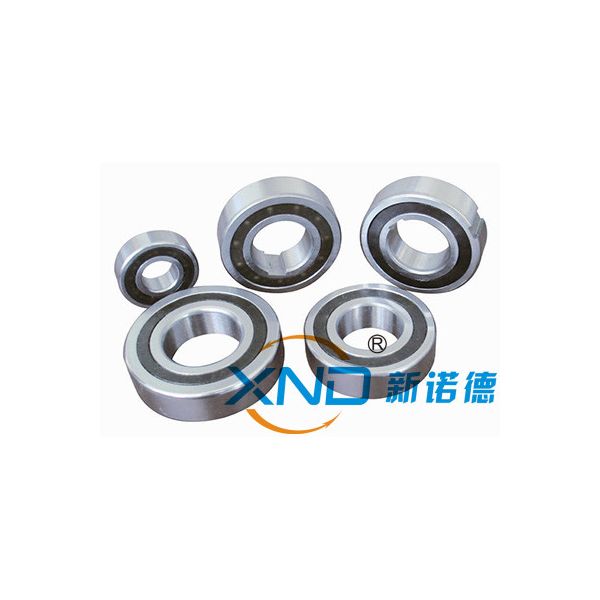

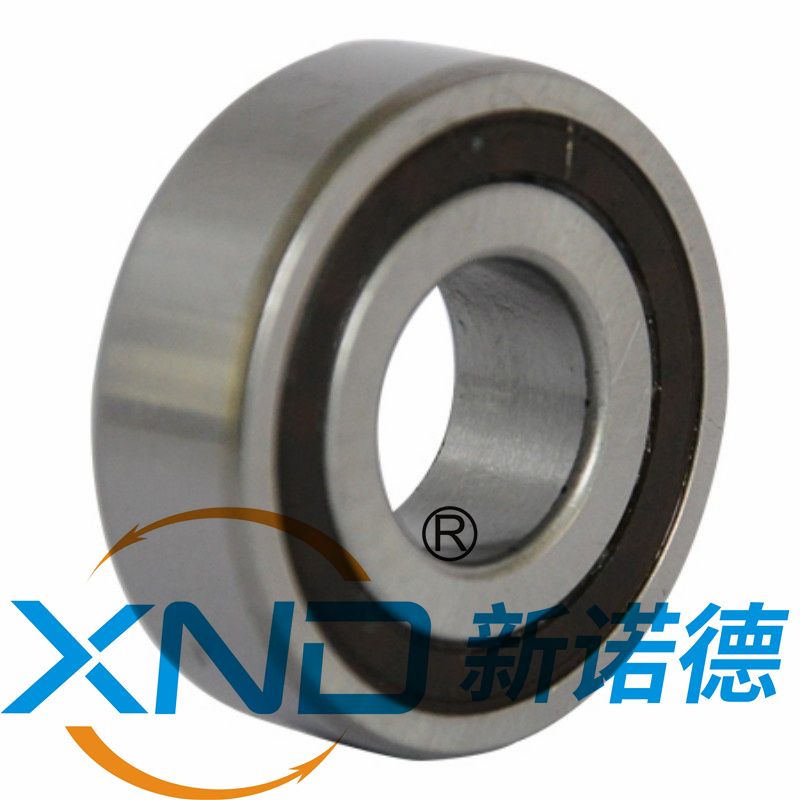

CSK系列楔块式超越离合器

型号： P5F48D164CD0EA

销售价：
会员价： 最低起 更多会员价
市场价：
商品评分： (共0人评论)

数量： -+
我要询价

商品详情

品牌：
所属分类：楔块式单向离合器
商品编号：00006

<div style="text-align: center;"><font face="黑体" size="6" color="#ff0000">CSK系列楔块式超越离合器</font></div><div style="text-align: center;">

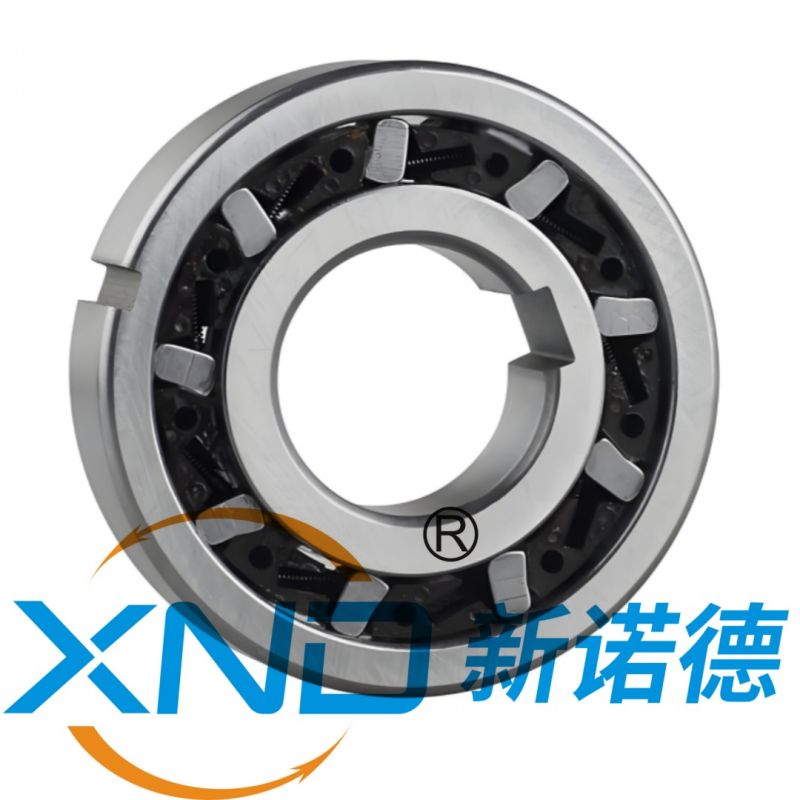

<img src="http://xinnuode.com/public/images/2b/ca/38/a7c03eb872f215fac83c7a5d45acc09fc0852381.jpg?1671084601#h"></div><div><font size="4">CSK系列楔块式超越离合器又称单向旋转球轴承，外形尺寸与62系列深沟球轴承相同。它是深沟球轴承和楔块式离合器的组合(CSK40

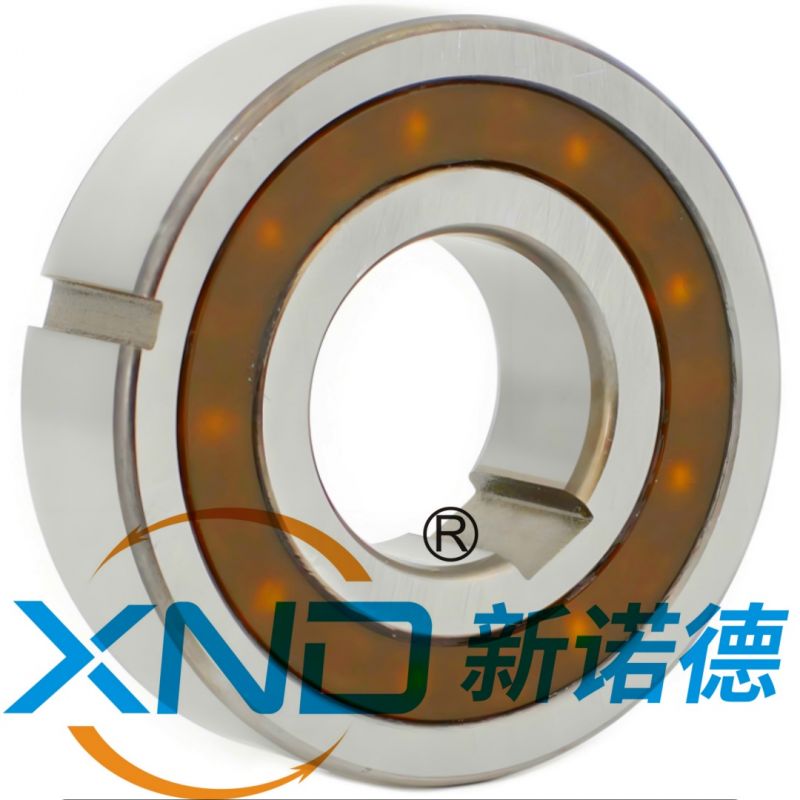

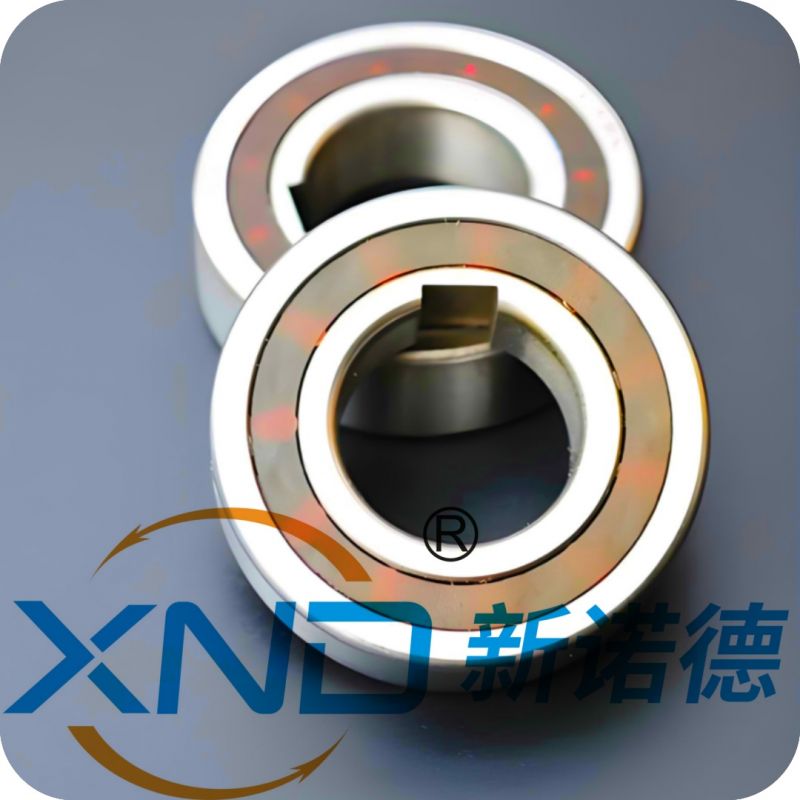

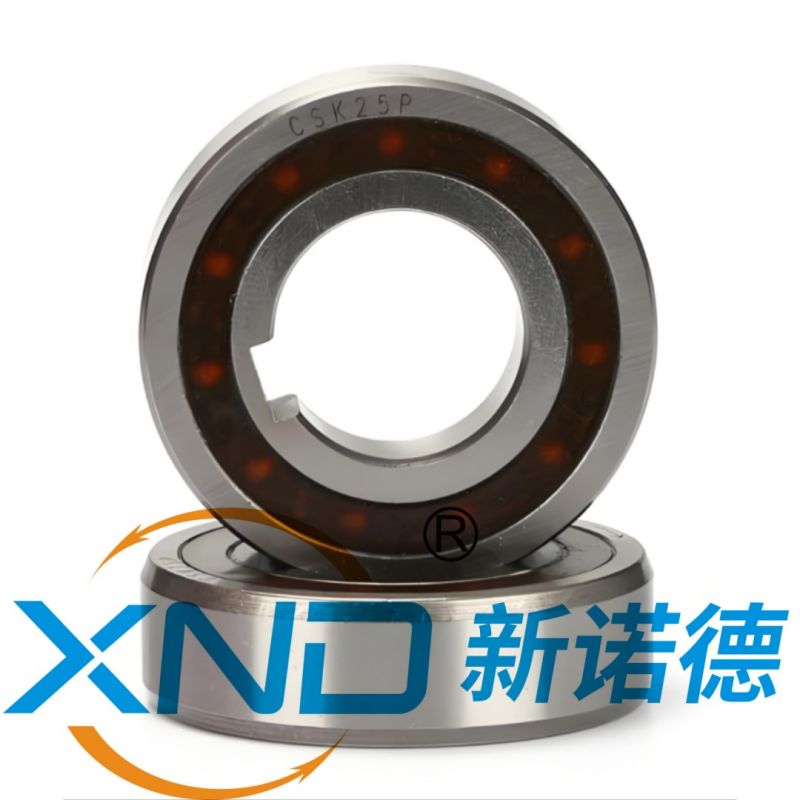

除外)，其内部已填注润滑脂。转矩的传递一般为过盈配合方式，以N6公差将外环与机壁压合，以N6公差将内环与工作轴压合。根据用户需要，内、外环可制作键槽，内环制作键槽的型号为CSK-P，内、外环皆有键槽的型号为CSK-PP。适用于印刷机械、包装机械、食品机械、测试设备等传递中。</font></div><p> </p>
<div><table cellspacing="0" cellpadding="0" width="533" border="0">
<tbody><tr>
<td class="style2" colspan="6">CSK( KK )型超越离合器（单向轴承）基本参数和主要尺寸</td>
<td class="bai_10" colspan="3">长度单位:mm</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="28">序<br/>号</td>
<td class="tb_line4" rowspan="2" width="147">型号</td>
<td class="tb_line2" height="20" width="43">公称<br/>转矩</td>
<td class="tb_line2" height="20" width="79">超越极<br/>限转速</td>
<td class="tb_line4" colspan="3">外形尺寸</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="36">轴承<br/>系列</td>
<td class="tb_line4" rowspan="2" width="36">
<p align="center">质量<br/>m<br/>( kg)</p>
</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4">n<br/>(r/min)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="60">内径d</td>
<td class="tb_line4" width="63">外径D</td>
<td class="tb_line4" width="61">宽度L</td></tr>
<tr>
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22" align="left">CSK 12</td>
<td class="tb_line" height="22">7.4</td>
<td class="tb_line" height="22">10000</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">6201</td>
<td class="tb_2" height="22">0.04</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">CSK 15</td>
<td class="tb_line" height="22">13.5</td>
<td class="tb_line" height="22">8400</td>
<td class="tb_line5" height="22">15</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line" height="22">11</td>
<td class="tb_line" height="22">6202</td>
<td class="tb_2" height="22">0.06</td></tr>
<tr>
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">CSK 17(KK17、BB17)</td>
<td class="tb_line" height="22">24.5</td>
<td class="tb_line" height="22">7350</td>
<td class="tb_line5" height="22">17</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">6203</td>
<td class="tb_2" height="22">0.07</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">CSK 20(KK20、BB20)</td>
<td class="tb_line" height="22">40</td>
<td class="tb_line" height="22">6000</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">47</td>
<td class="tb_line" height="22">14</td>
<td class="tb_line" height="22">6204</td>
<td class="tb_2" height="22">0.11</td></tr>
<tr>
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">CSK 25(KK25、BB25)</td>
<td class="tb_line" height="22">68</td>
<td class="tb_line" height="22">5200</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">52</td>
<td class="tb_line" height="22">15</td>
<td class="tb_line" height="22">6205</td>
<td class="tb_2" height="22">0.14</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">CSK 30(KK30、BB30)</td>
<td class="tb_line" height="22">110</td>
<td class="tb_line" height="22">4200</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">62</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">6206</td>
<td class="tb_2" height="22">0.21</td></tr>
<tr>
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">CSK 35(KK35、BB35)</td>
<td class="tb_line" height="22">140</td>
<td class="tb_line" height="22">3600</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">72</td>
<td class="tb_line" height="22">17</td>
<td class="tb_line" height="22">6207</td>
<td class="tb_2" height="22">0.30</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">CSK 40</td>
<td class="tb_line" height="22">260</td>
<td class="tb_line" height="22">3000</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" bgcolor="#bdbec0" height="22">80</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">　</td>
<td class="tb_2" height="22">0.50</td></tr>
<tr class="hei1_9" bgcolor="#ffffff">
<td height="25" colspan="9">
<p>CSK 系列相当于 FAG 公司的 ZZ 系列 ; STIEBER 公司的 KK 系列 ; DANA 公司的 BB 系列。 </p>
</td></tr>
<tr class="hei1_9" bgcolor="#ffffff">
<td colspan="9">
<hr noshade="">
</td></tr></tbody></table>
<table cellspacing="0" cellpadding="0" width="533" border="0">
<tbody>
<tr>
<td class="hei1_9" width="406">
<p>CSK-P 及 CSK-PP 型键槽尺寸</p>
</td>
<td class="bai_10" width="145">长度单位:mm</td></tr></tbody></table>
<table cellspacing="0" cellpadding="0" width="533" border="0">
<tbody>
<tr class="tb_line4">
<td class="tb_line4" bgcolor="#ff7f00" height="35" width="75">
<img src="http://www.drv-cn.cn/images/jiancao.gif" width="75" height="35"></td>
<td class="tb_line4" bgcolor="#ff7f00" width="60">
<p align="center"><strong>CSK15P<br/></strong><strong>CSK15PP</strong></p>
</td>
<td class="tb_line4" bgcolor="#ff7f00" width="64"><strong>CSK17P
<br/>CSK17PP</strong></td>
<td class="tb_line4" bgcolor="#ff7f00" width="71"><strong>CSK20P <br/>CSK20PP</strong>
</td>
<td class="tb_line4" bgcolor="#ff7f00" width="71"><strong>CSK25P
<br/>CSK25PP</strong></td>
<td class="tb_line4" bgcolor="#ff7f00" width="71"><strong>CSK30P
<br/>CSK30PP</strong></td>
<td class="tb_line4" bgcolor="#ff7f00" width="71"><strong>CSK35P
<br/>CSK35PP</strong></td>
<td class="tb_line4" bgcolor="#ff7f00" width="70"><strong>CSK40P
<br/>CSK40PP</strong></td></tr>
<tr>
<td class="tb_line" height="22">内环(b1×t1)</td>
<td class="tb_line" height="22">5×1.5</td>
<td class="tb_line" height="22">5×1.8</td>
<td class="tb_line" height="22">6×2.0</td>
<td class="tb_line" height="22">8×2.0</td>
<td class="tb_line" height="22">10×2.3</td>
<td class="tb_line" height="22">10×2.4</td>
<td class="tb_2" height="22">12×2.4</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">外环(b×t)</td>
<td class="tb_line" height="22">2×0.6</td>
<td class="tb_line" height="22">2×1.0</td>
<td class="tb_line" height="22">3×1.5</td>
<td class="tb_line" height="22">6×2.0</td>
<td class="tb_line" height="22">6×2.0</td>
<td class="tb_line" height="22">8×2.5</td>
<td class="tb_2" height="22">10×3.0</td></tr></tbody></table>
<table class="hei1_9" cellspacing="0" cellpadding="0" width="533" border="0">
<tbody>
<tr>
<td>
<p>◆CSK-P 内环与工作轴可适用 K6 公差，外环依然使用 N6 公差紧配压入机壁；</p>
</td></tr>
<tr>
<td>◆CSK-PP 内环与工作轴为 K6 公差，外环与机壁为 K6 公差，也可内环与轴 h6 公差或外环与机壁 H6 公差。</td></tr></tbody></table></div>
