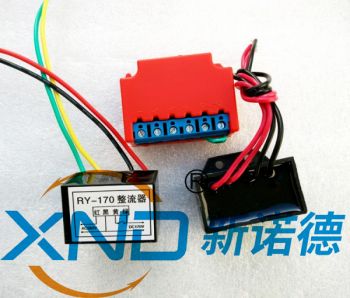

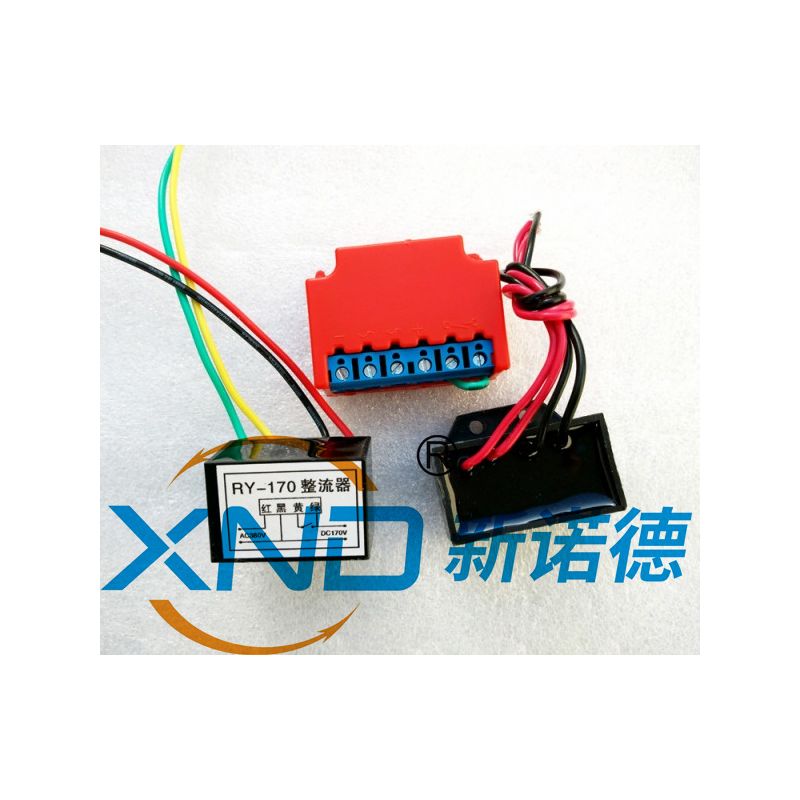

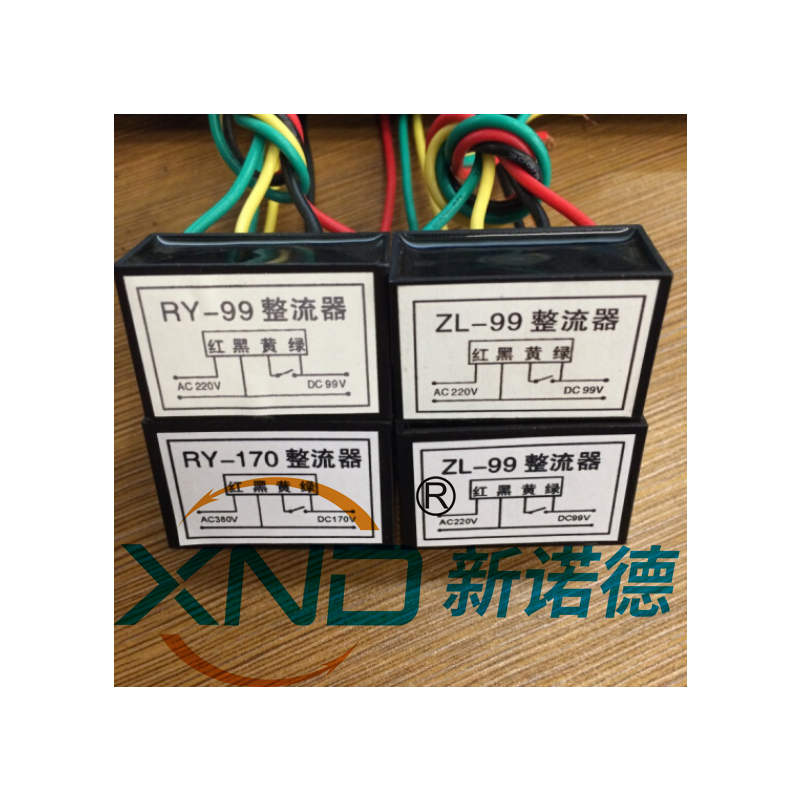

刹车电机整流器系列RY-170,RY-99,ZL170,ZL99刹车整流块/刹车模块

型号： P6152A72E20EE3
品牌： XND-新诺德

销售价：
会员价： 最低起 更多会员价
市场价：
商品评分： (共0人评论)

数量： -+
我要询价

商品详情

品牌：XND-新诺德
所属分类：失电制动器-电磁抱闸
商品编号：G6152A72E2095B

<div style="text-align: center;"><font face="Microsoft Yahei" size="6" color="#ff0000">刹车电机整流器系列RY-170,RY-99</font></div><div style="text-align: center;"><font face="Microsoft Yahei" size="6" color="#ff0000">ZL170,ZL99刹车整流块/刹车模块 </font></div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/1d/ed/33/38153e83097fcd6aced737713299b4d89db4edb3.jpg?1632806518#w"></div><div style="text-align: left;"><span id="LabNewsContent"><div class="title" style="font-variant-numeric: normal; font-variant-east-asian: normal; font-weight: bold; font-size: 18px; line-height: 20px; font-family: 宋体; margin: 6px 0px; padding: 0px; text-align: center; font-stretch: normal; text-size-adjust: auto;"><span style="margin: 0px; padding: 0px; font-size: 16px;">整流器概述及分类</span></div><div class="content" style="font-variant-numeric: normal; font-variant-east-asian: normal; font-size: 14px; line-height: 26px; font-family: 宋体; margin: 10px 20px; padding: 0px; font-stretch: normal; text-size-adjust: auto;"><p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">概述</span></p>
<p style="margin: 0px; padding: 0px;">制动器是直流线圈 ，由交流电供电时必需配接整流器将交流电转换成直流电供电磁制动器工作。通常情况下，制动器的电源在整流器的交流侧控制，若需实现制动器的快速制动，则应在整流器的直流侧对制动器进行控制（在整流器的直流侧串接一个与电机电源同步的开关）。我公司开发有直接可实现快速制动的整流器，在整流器交流侧断电就可实现快速制动。<br style="margin: 0px; padding: 0px;">具有以下特点：<br style="margin: 0px; padding: 0px;">1. 外形美观、体积小、接线方便；<br style="margin: 0px; padding: 0px;">2. 全进口电子元器件，具有输入、输出保护电路，适应于电感器件的高频次工作；<br style="margin: 0px; padding: 0px;">3. 密封性好，适合（YEJ）电动机标准的工作环境，可直接安装在电机的接线盒内。</p>
<p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;"><strong>主要类型</strong></span></p>
</div></span></div><div style="text-align: left;"><table style="margin: 0px; padding: 0px;" border="1" cellspacing="0" cellpadding="0"><tbody style="margin: 0px; padding: 0px;"><tr style="margin: 0px; padding: 0px;"><td width="95" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">类 别</div></td><td width="74" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">型 号</div></td><td width="233" style="margin: 0px; padding: 0px;" colspan="2"><div align="center" style="margin: 0px; padding: 0px;">参<span style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">  <span class="Apple-converted-space"> </span></span>数</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">备<span style="margin: 0px; padding: 0px;"> 注</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">输入电压（<span style="margin: 0px; padding: 0px;">V AC）</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">输出电压（<span style="margin: 0px; padding: 0px;">V DC）</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="95" style="margin: 0px; padding: 0px;" rowspan="8"><div align="center" style="margin: 0px; padding: 0px;"> 普<span style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">  <span class="Apple-converted-space"> </span></span>通</span></div><div align="center" style="margin: 0px; padding: 0px;"> </div><div align="center" style="margin: 0px; padding: 0px;">整 流 器</div></td><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">ZL1-99</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">99±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">半波整流</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">ZL1-170</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">170±<span style="margin: 0px; padding: 0px;">10%</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">ZL2-96</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">99±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">半波整流</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">ZL2-170</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">170±<span style="margin: 0px; padding: 0px;">10%</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">ZL3系列</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">99±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">半波整流</div><div align="center" style="margin: 0px; padding: 0px;">内置火花抑制器</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">170±<span style="margin: 0px; padding: 0px;">10%</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">ZL5系列</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">198±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">全波<span style="margin: 0px; padding: 0px;">(桥式)整流</span></div><div align="center" style="margin: 0px; padding: 0px;">内置火花抑制器</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">342±<span style="margin: 0px; padding: 0px;">10%</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="95" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">变压整流器</div><div align="center" style="margin: 0px; padding: 0px;">（过励磁）</div></td><td width="74" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">BZL3系列</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">198→<span style="margin: 0px; padding: 0px;"><span class="Apple-converted-space"> </span>99±10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">输出电压在<span style="margin: 0px; padding: 0px;">1.5秒内由全波变为半波。</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">342→<span style="margin: 0px; padding: 0px;">170±10%</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="95" style="margin: 0px; padding: 0px;" rowspan="5"><div align="center" style="margin: 0px; padding: 0px;">快速制动</div><div align="center" style="margin: 0px; padding: 0px;"> </div><div align="center" style="margin: 0px; padding: 0px;">整 流 器</div></td><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">KZL1-96</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">99±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">半波整流</div><div align="center" style="margin: 0px; padding: 0px;">内置高品质场效应管</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">KZL1-170</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">170±<span style="margin: 0px; padding: 0px;">10%</span></div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">KZL2-1</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">99±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">半波整流</div><div align="center" style="margin: 0px; padding: 0px;">内置施耐德继电器</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="74" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">KZL3系列</div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">220±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">99±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="169" style="margin: 0px; padding: 0px;" rowspan="2"><div align="center" style="margin: 0px; padding: 0px;">半波整流，高品质场效应管和火花抑制器</div></td></tr><tr style="margin: 0px; padding: 0px;"><td width="117" style="margin: 0px; padding: 0px;"><div align="center" style="margin: 0px; padding: 0px;">380±<span style="margin: 0px; padding: 0px;">10%</span></div></td><td width="117" style="margin: 0px; padding: 0px;"><div style="margin: 0px; padding: 0px;">170±<span style="margin: 0px; padding: 0px;">10%</span></div></td></tr></tbody></table><p style="margin: 0px; padding: 0px; font-size: 14px;"></p>
<p style="margin: 0px; padding: 0px;"><font size="4">波整流：<span style="margin: 0px; padding: 0px;">U输出=0.45*U输入</span></font></p>
<div style="margin: 0px; padding: 0px;"><font size="4">全波整流：<span style="margin: 0px; padding: 0px;">U输出=0.90*U输入；</span></font></div><div style="text-align: center; margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">
<img src="http://xinnuode.com/public/images/5a/39/be/4fb043f133a0c282d816eefb819549298724f44c.png?1632806763#h"></span></div><div style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;"><font size="4"><p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">整流器使用注意事项</span></p>
<p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">l<span style="margin: 0px; padding: 0px;"> <span class="Apple-converted-space"> </span></span></span>整流器输入端必须接入工频<span style="margin: 0px; padding: 0px;">50HZ电源，严禁接入变频电源。</span></p>
<p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">2<span style="margin: 0px; padding: 0px;">  </span></span>整流器的输出直流电压必须与制动器额定电压相匹配。</p>
<p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;">3  </span></span>整流器最大允许直流电流<span style="margin: 0px; padding: 0px;"><font style="">2.5A。</font></span></p>
<p style="margin: 0px; padding: 0px;"><span style="margin: 0px; padding: 0px;"><font style="">
<img src="http://xinnuode.com/public/images/59/b0/46/4b7b92a232ac0676f83492993ab3bc0c16086a8b.jpg?1632806820#h"></font></span></p>
</font></span></div></div>
