NYD型低速接触式逆止器

型号： P5F48FF59AC435
品牌： XND-新诺德

销售价：
会员价： 最低起 更多会员价
市场价：
商品评分： (共0人评论)

数量： -+
我要询价

商品详情

品牌：XND-新诺德
所属分类：接触式逆止器
商品编号：G5F48FF59AC3F3

<div style="text-align: center;"><font face="黑体" size="6" color="#ff0000"><strong>NYD(NJ)型 低速接触式逆止器</strong></font></div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/95/52/7a/79ec52af94b44aa2d571678be84a84818ac5ca89.jpg?1662382897#h"></div><div style="text-align: left;"><font size="4">NYD

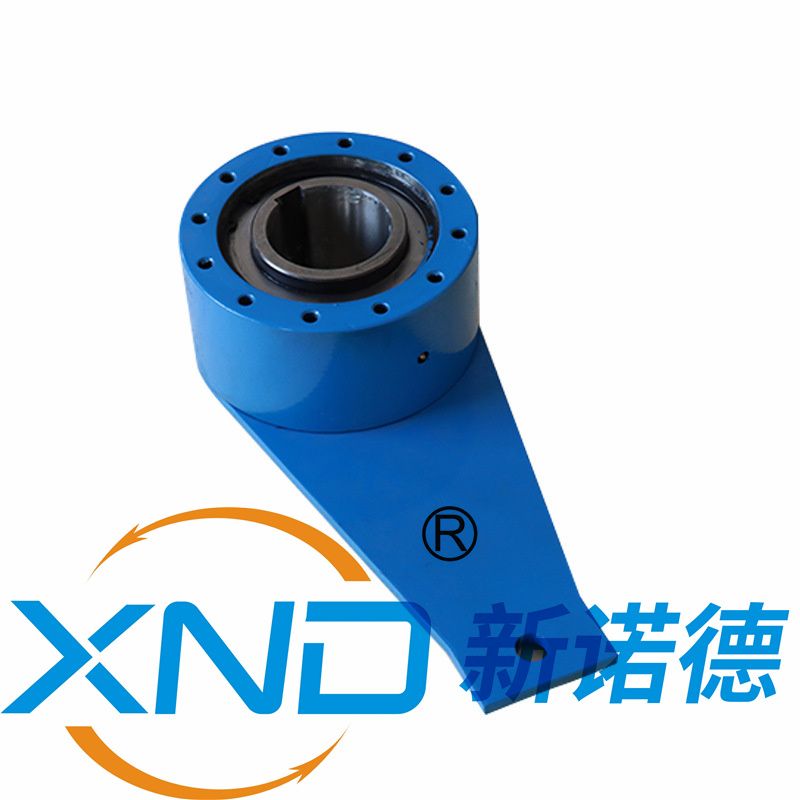

型逆止器是一种适用于低速的接触式防逆转装置。具有重量轻、结构紧凑、逆止可靠、解脱容易、安装方便、适应性强等优点。是提升运输设备上首选的安全保护装置，一般适用于提升带式输送机、斗式提升机、刮板输送机及其他有逆止要求的设备。</font></div><div style="text-align: center;"><br/></div><div><table cellspacing="0" cellpadding="0" width="533" border="0" style="text-align: center;"><tbody><tr>
<td class="style1" width="309">NYD （ NJ ）型逆止器基本参数和主要尺寸 </td>
<td class="bai_10" width="242">长度单位： mm </td></tr></tbody></table><table cellspacing="0" cellpadding="0" width="533" border="0" style="text-align: center;">
<tbody>
<tr class="tb_line4" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="53">型号</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="41">公称<br/>转矩<br/>Tn<br/>(N·m)</td>
<td class="tb_line4" rowspan="2" width="52">孔径<br/>范围<br/>d</td>
<td class="tb_line4" rowspan="2" width="37">内圈<br/>最高<br/>转速<br/>n<br/>(r/min)</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="51">
<p align="center">空转<br/>阻力矩<br/>(N · m) </p>
</td>
<td class="tb_line4" colspan="9">结 构 尺 寸 (mm ) </td>
<td class="tb_line4" rowspan="2" width="44">最大<br/>质量<br/>m<br/>(Kg)</td></tr>
<tr bgcolor="#ff7f00">
<td class="tb_line4" width="28">A</td>
<td class="tb_line4" width="30">B</td>
<td class="tb_line4" bgcolor="#ff7f00" width="34">D</td>
<td class="tb_line4" width="33">H</td>
<td class="tb_line4" width="31">h</td>
<td class="tb_line4" width="34">h1</td>
<td class="tb_line4" width="30">Φ</td>
<td class="tb_line4" width="27">L</td>
<td class="tb_line4" width="28">L1</td></tr>
<tr>
<td class="tb_line" height="22">NYD65</td>
<td class="tb_line" height="22">1600</td>
<td class="tb_line" height="22">50-65</td>
<td class="tb_line6" bgcolor="#ff7f00" valign="middle" rowspan="5">150</td>
<td class="tb_line">4</td>
<td class="tb_line5">50</td>
<td class="tb_line5">6</td>
<td class="tb_line5">160</td>
<td class="tb_line5">226</td>
<td class="tb_line5">30</td>
<td class="tb_line5">16</td>
<td class="tb_line5">13.5</td>
<td class="tb_line5">85</td>
<td class="tb_line">106</td>
<td class="tb_2">13.5</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" bgcolor="#bdbec0" height="22">NYD75</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">2500</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">60-75</td>
<td class="tb_line" bgcolor="#bdbec0">5</td>
<td class="tb_line5" bgcolor="#bdbec0">65</td>
<td class="tb_line5" bgcolor="#bdbec0">6</td>
<td class="tb_line5" bgcolor="#bdbec0">170</td>
<td class="tb_line5" bgcolor="#bdbec0">269</td>
<td class="tb_line5" bgcolor="#bdbec0">35</td>
<td class="tb_line5" bgcolor="#bdbec0">19</td>
<td class="tb_line5" bgcolor="#bdbec0">16.5</td>
<td class="tb_line5" bgcolor="#bdbec0">85</td>
<td class="tb_line" bgcolor="#bdbec0">106</td>
<td class="tb_2" bgcolor="#bdbec0">16.1</td></tr>
<tr>
<td class="tb_line" height="22">NYD85</td>
<td class="tb_line" height="22">6000</td>
<td class="tb_line" height="22">70-85</td>
<td class="tb_line">8</td>
<td class="tb_line5">95</td>
<td class="tb_line5">9</td>
<td class="tb_line5">210</td>
<td class="tb_line5">329</td>
<td class="tb_line5">45</td>
<td class="tb_line5">29</td>
<td class="tb_line5">20.5</td>
<td class="tb_line5">110</td>
<td class="tb_line">135</td>
<td class="tb_2">29.2</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" bgcolor="#bdbec0" height="22">NYD95</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">8000</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">80-95</td>
<td class="tb_line" bgcolor="#bdbec0">10</td>
<td class="tb_line5" bgcolor="#bdbec0">105</td>
<td class="tb_line5" bgcolor="#bdbec0">9</td>
<td class="tb_line5" bgcolor="#bdbec0">230</td>
<td class="tb_line5" bgcolor="#bdbec0">382</td>
<td class="tb_line5" bgcolor="#bdbec0">55</td>
<td class="tb_line5" bgcolor="#bdbec0">32</td>
<td class="tb_line5" bgcolor="#bdbec0">20.5</td>
<td class="tb_line5" bgcolor="#bdbec0">110</td>
<td class="tb_line" bgcolor="#bdbec0">138</td>
<td class="tb_2" bgcolor="#bdbec0">37.2</td></tr>
<tr>
<td class="tb_line" height="22">NYD110</td>
<td class="tb_line" height="22">11000</td>
<td class="tb_line" height="22">90-110</td>
<td class="tb_line">15</td>
<td class="tb_line5">110</td>
<td class="tb_line5">12</td>
<td class="tb_line5">270</td>
<td class="tb_line5">425</td>
<td class="tb_line5">60</td>
<td class="tb_line5">40</td>
<td class="tb_line5">26</td>
<td class="tb_line5">110</td>
<td class="tb_line">141</td>
<td class="tb_2">46.1</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" bgcolor="#bdbec0" height="22">NYD130</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">16000</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">100-130</td>
<td class="tb_line6" bgcolor="#ff7f00" rowspan="3">100</td>
<td class="tb_line" bgcolor="#bdbec0">20</td>
<td class="tb_line5" bgcolor="#bdbec0">120</td>
<td class="tb_line5" bgcolor="#bdbec0">12</td>
<td class="tb_line5" bgcolor="#bdbec0">320</td>
<td class="tb_line5" bgcolor="#bdbec0">506</td>
<td class="tb_line5" bgcolor="#bdbec0">65</td>
<td class="tb_line5" bgcolor="#bdbec0">36</td>
<td class="tb_line5" bgcolor="#bdbec0">26</td>
<td class="tb_line5" bgcolor="#bdbec0">130</td>
<td class="tb_line" bgcolor="#bdbec0">161</td>
<td class="tb_2" bgcolor="#bdbec0">82.8</td></tr>
<tr>
<td class="tb_line" height="22">NYD160</td>
<td class="tb_line" height="22">25000</td>
<td class="tb_line" height="22">120-160</td>
<td class="tb_line">35</td>
<td class="tb_line5">120</td>
<td class="tb_line5">20</td>
<td class="tb_line5">360</td>
<td class="tb_line5">612</td>
<td class="tb_line5">65</td>
<td class="tb_line5">32</td>
<td class="tb_line5">31</td>
<td class="tb_line5">140</td>
<td class="tb_line">183</td>
<td class="tb_2">125</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" bgcolor="#bdbec0" height="22">NYD200</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">38000</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">160-200</td>
<td class="tb_line" bgcolor="#bdbec0">45</td>
<td class="tb_line5" bgcolor="#bdbec0">130</td>
<td class="tb_line5" bgcolor="#bdbec0">20</td>
<td class="tb_line5" bgcolor="#bdbec0">430</td>
<td class="tb_line5" bgcolor="#bdbec0">623</td>
<td class="tb_line5" bgcolor="#bdbec0">70</td>
<td class="tb_line5" bgcolor="#bdbec0">43</td>
<td class="tb_line5" bgcolor="#bdbec0">41</td>
<td class="tb_line5" bgcolor="#bdbec0">160</td>
<td class="tb_line" bgcolor="#bdbec0">207</td>
<td class="tb_2" bgcolor="#bdbec0">180</td></tr>
<tr>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td>
<td>　</td></tr></tbody></table>
<table cellspacing="0" cellpadding="0" width="553" border="0" style="text-align: center;">
<tbody>
<tr class="tb_line4">
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="82">型号</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="45">公称<br/>转矩<br/>Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="43">孔径<br/>范围<br/>d</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="46">内圈<br/>最高<br/>转速<br/>n<br/>(r/min)</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="43">空转<br/>阻力矩<br/>(N · m)</td>
<td class="tb_line4" bgcolor="#ff7f00" colspan="7">结 构 尺 寸 (mm ) </td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="36">最大<br/>质量<br/>m<br/>(Kg)</td></tr>
<tr>
<td class="tb_line4" bgcolor="#ff7f00" width="38">A</td>
<td class="tb_line4" bgcolor="#ff7f00" width="35">B</td>
<td class="tb_line4" bgcolor="#ff7f00" width="36">D</td>
<td class="tb_line4" bgcolor="#ff7f00" width="39">H</td>
<td class="tb_line4" bgcolor="#ff7f00" width="34">h</td>
<td class="tb_line4" bgcolor="#ff7f00" width="38">L</td>
<td class="tb_line4" bgcolor="#ff7f00" width="38">L1</td></tr>
<tr>
<td class="tb_line" height="22">NYD220</td>
<td class="tb_line" height="22">50000</td>
<td class="tb_line" height="22">160-220</td>
<td class="tb_line6" bgcolor="#ff7f00">80</td>
<td class="tb_line">75</td>
<td class="tb_line5">238</td>
<td class="tb_line5">259</td>
<td class="tb_line5">500</td>
<td class="tb_line5">820</td>
<td class="tb_line5">80</td>
<td class="tb_line5">230</td>
<td class="tb_line">303</td>
<td class="tb_2">351</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">NYD250</td>
<td class="tb_line" height="22">90000</td>
<td class="tb_line" height="22">180-250</td>
<td class="tb_line6" bgcolor="#ff7f00" rowspan="7">50</td>
<td class="tb_line">95</td>
<td class="tb_line5">288</td>
<td class="tb_line5">323</td>
<td class="tb_line5">600</td>
<td class="tb_line5">1000</td>
<td class="tb_line5">100</td>
<td class="tb_line5">290</td>
<td class="tb_line">367</td>
<td class="tb_2">675</td></tr>
<tr>
<td class="tb_line" height="22">NYD270</td>
<td class="tb_line" height="22">125000</td>
<td class="tb_line" height="22">200-270</td>
<td class="tb_line">100</td>
<td class="tb_line5">298</td>
<td class="tb_line5">323</td>
<td class="tb_line5">650</td>
<td class="tb_line5">1100</td>
<td class="tb_line5">110</td>
<td class="tb_line5">290</td>
<td class="tb_line">367</td>
<td class="tb_2">737</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">NYD300</td>
<td class="tb_line" height="22">180000</td>
<td class="tb_line" height="22">230-300</td>
<td class="tb_line">110</td>
<td class="tb_line5">356</td>
<td class="tb_line5">335</td>
<td class="tb_line5">780</td>
<td class="tb_line5">1300</td>
<td class="tb_line5">135</td>
<td class="tb_line5">290</td>
<td class="tb_line">392</td>
<td class="tb_2">1123</td></tr>
<tr>
<td class="tb_line" height="22">NYD320</td>
<td class="tb_line" height="22">270000</td>
<td class="tb_line" height="22">250-320</td>
<td class="tb_line">140</td>
<td class="tb_line5">386</td>
<td class="tb_line5">345</td>
<td class="tb_line5">850</td>
<td class="tb_line5">1500</td>
<td class="tb_line5">135</td>
<td class="tb_line5">320</td>
<td class="tb_line">412</td>
<td class="tb_2">1425</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">NYD350</td>
<td class="tb_line" height="22">320000</td>
<td class="tb_line" height="22">250-350</td>
<td class="tb_line">160</td>
<td class="tb_line5">414</td>
<td class="tb_line5">360</td>
<td class="tb_line5">930</td>
<td class="tb_line5">1600</td>
<td class="tb_line5">135</td>
<td class="tb_line5">360</td>
<td class="tb_line">426</td>
<td class="tb_2">1955</td></tr>
<tr>
<td class="tb_line" height="22">NYD420</td>
<td class="tb_line" height="22">520000</td>
<td class="tb_line" height="22">320-420</td>
<td class="tb_line">220</td>
<td class="tb_line5">474</td>
<td class="tb_line5">484</td>
<td class="tb_line5">1030</td>
<td class="tb_line5">1800</td>
<td class="tb_line5">165</td>
<td class="tb_line5">450</td>
<td class="tb_line">550</td>
<td class="tb_2">2930</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">NYD450</td>
<td class="tb_line" height="22">700000</td>
<td class="tb_line" height="22">350-450</td>
<td class="tb_line">250</td>
<td class="tb_line5">526</td>
<td class="tb_line5">494</td>
<td class="tb_line5">1090</td>
<td class="tb_line5">2000</td>
<td class="tb_line5">165</td>
<td class="tb_line5">480</td>
<td class="tb_line">574</td>
<td class="tb_2">3380</td></tr>
<tr>
<td class="hei1_9" colspan="13">
<table height="27" cellspacing="0" cellpadding="0" width="551" border="0">
<tbody>
<tr class="hei1_9">
<td width="28">注：</td>
<td width="523">
<p>1 、孔公差为 H7( GB/T1800.4-1999)，推荐轴公差为 h6，配合公差为 H7/h6，键槽按GB/T1095-1979 的 JS9
、GB/T1184-1996 的 7-9 级标准制作。<br/>2 、请在订货单上标出孔径、尺寸公差，否则按标准配合公差 H7 加工。<br/>3
、请选用优先孔径： 50 、 55 、 60 、 65 、 70 、 75 、 80 、 85 、 90 、 95 、 100 、 110 、120 、130  </p>
</td></tr></tbody></table></td></tr></tbody></table>
<img src="http://xinnuode.com/public/images/52/f9/77/c4652ee6e50532715d6dc9c38886e8fd2b6eb7b7.jpg?1630577673#w">
<img src="http://xinnuode.com/public/images/36/0a/84/bd7376b255ca84e08047fad23521ba4786096c4e.jpg?1630577686#h">
<img src="http://xinnuode.com/public/images/04/94/8d/787e9c6392bb808197d7d87b73011cb33c7fd3c3.jpg?1630577702#h">
<img src="http://xinnuode.com/public/images/6e/c6/04/9cc8e119fccec155571a560221588b369cbce90d.jpg?1630577717#h">
<img src="http://xinnuode.com/public/images/d0/42/92/53694bc8c86dd126d0f38e9069bb26a166cd02f8.jpg?1630577735#w"></div>

小东推荐
