CGA型滚柱式单向超越离合器

型号： P5F48FB6BE1F08
品牌： XND-新诺德

销售价：
会员价： 最低起 更多会员价
市场价：
商品评分： (共0人评论)

数量： -+
我要询价

商品详情

品牌：XND-新诺德
所属分类：滚柱式单向离合器
商品编号：G5F48FB6BE1EC4

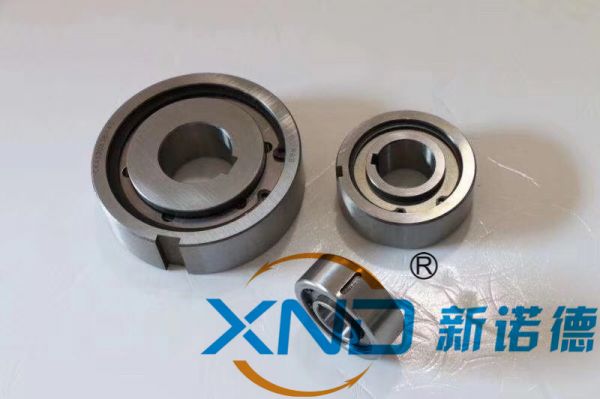

<div style="text-align: center;"><font face="黑体" size="6" color="#ff0000">CGA型 滚柱式单向超越离合器</font></div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/e8/c3/a9/f50d35824d9a5ac7179d194b323cf1d9feebdbf0.jpg?1598618401#h"></div><div style="text-align: left;"><span class="hei1_10"><font size="4">         CGA
型滚柱式单向超越离合器系无轴承支撑，使用时需配合轴承安装，以防止轴向力和径向力。常用于包装机械、印刷机械、食品机械、机床和纺织机械等机械传动中。</font></span></div><div style="text-align: center;"><span class="hei1_10">
<img src="http://xinnuode.com/public/images/7f/ca/7a/65ff09acba4fa9a45a90a5350ff813b26bc1779e.png?1672387537#w"></span></div><div><span class="hei1_10"><table class="tb_2" cellspacing="0" cellpadding="0" width="541" border="0" style="text-align: center;"><tbody><tr bgcolor="#ffffff">
<td class="hei1_9" bgcolor="#ffffff" colspan="7"><span class="hei1_9">CGA型滚柱式单向超越离合器</span></td>
<td class="bai_10" bgcolor="#ffffff" colspan="3"><span class="bai_10">长度单位：
mm</span></td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="23">序<br/>号</td>
<td class="tb_line4" rowspan="2" width="127">型 号</td>
<td class="tb_line2" height="20">公称<br/>转矩</td>
<td class="tb_line2">超越时的<br/>极限转速</td>
<td class="tb_line4" height="20" colspan="3">外环 </td>
<td class="tb_line4" bgcolor="#ff7f00" colspan="3">内环</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00">n<br/>(r/min)</td>
<td class="tb_line4" width="37">D<br/>(h7)</td>
<td class="tb_line4" width="72">键槽<br/>(b×t )</td>
<td class="tb_line4" width="34">L</td>
<td class="tb_line4" bgcolor="#ff7f00" width="30">d<br/>(H7)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="88">键槽<br/>(b1×t1 )</td>
<td class="tb_line4" bgcolor="#ff7f00" width="42">L1</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">CGA37×20-12</td>
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">1500</td>
<td class="tb_line5" height="22">37</td>
<td class="tb_line5" height="22">4×2.5</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">4×1.8</td>
<td class="tb_2" height="22">20</td></tr>
<tr>
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">CGA50×25-15</td>
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">1200</td>
<td class="tb_line5" height="22">50</td>
<td class="tb_line5" height="22">5×3.0</td>
<td class="tb_line" height="22">25</td>
<td class="tb_line5" height="22">15</td>
<td class="tb_line5" height="22">5×2.3</td>
<td class="tb_2" height="22">25</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">CGA60×26-20</td>
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">1100</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">5×3.0</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">5×2.8</td>
<td class="tb_2" height="22">26</td></tr>
<tr>
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">CGA75×30-25</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">1000</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">5×3.5</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">6×3.3</td>
<td class="tb_2" height="22">30</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">CGA80×37-25</td>
<td class="tb_line" height="22">25</td>
<td class="tb_line" height="22">900</td>
<td class="tb_line5" height="22">80</td>
<td class="tb_line5" height="22">6×3.5</td>
<td class="tb_line" height="22">37</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">6×3.3</td>
<td class="tb_2" height="22">37</td></tr>
<tr>
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">CGA90×42-30</td>
<td class="tb_line" height="22">40</td>
<td class="tb_line" height="22">850</td>
<td class="tb_line5" height="22">90</td>
<td class="tb_line5" height="22">8×3.5</td>
<td class="tb_line" height="22">42</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">8×3.3</td>
<td class="tb_2" height="22">42</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">CGA100×48-40</td>
<td class="tb_line" height="22">65</td>
<td class="tb_line" height="22">750</td>
<td class="tb_line5" height="22">100</td>
<td class="tb_line5" height="22">10×3.5</td>
<td class="tb_line" height="22">48</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">12×3.3</td>
<td class="tb_2" height="22">48</td></tr>
<tr>
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">CGA110×56-40</td>
<td class="tb_line" height="22">80</td>
<td class="tb_line" height="22">650</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">10×3.5</td>
<td class="tb_line" height="22">56</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">12×3.3</td>
<td class="tb_2" height="22">56</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">CGA120×58-50</td>
<td class="tb_line" height="22">120</td>
<td class="tb_line" height="22">550</td>
<td class="tb_line5" height="22">120</td>
<td class="tb_line5" height="22">12×4.0</td>
<td class="tb_line" height="22">58</td>
<td class="tb_line5" height="22">50</td>
<td class="tb_line5" height="22">12×3.8</td>
<td class="tb_2" height="22">58</td></tr>
<tr>
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">CGA130×63-50</td>
<td class="tb_line" height="22">145</td>
<td class="tb_line" height="22">500</td>
<td class="tb_line5" height="22">130</td>
<td class="tb_line5" height="22">12×4.0</td>
<td class="tb_line" height="22">63</td>
<td class="tb_line5" height="22">50</td>
<td class="tb_line5" height="22">12×3.8</td>
<td class="tb_2" height="22">63</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">11</td>
<td class="tb_line" height="22">CGA140×65-60</td>
<td class="tb_line" height="22">200</td>
<td class="tb_line" height="22">420</td>
<td class="tb_line5" height="22">140</td>
<td class="tb_line5" height="22">12×4.0</td>
<td class="tb_line" height="22">65</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">12×3.8</td>
<td class="tb_2" height="22">65</td></tr>
<tr>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">CGA150×78-60</td>
<td class="tb_line" height="22">230</td>
<td class="tb_line" height="22">400</td>
<td class="tb_line5" height="22">150</td>
<td class="tb_line5" height="22">14×4.4</td>
<td class="tb_line" height="22">78</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">14×4.0</td>
<td class="tb_2" height="22">78</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">13</td>
<td class="tb_line" height="22">CGA170×80-70</td>
<td class="tb_line" height="22">250</td>
<td class="tb_line" height="22">370</td>
<td class="tb_line5" height="22">170</td>
<td class="tb_line5" height="22">14×5.5</td>
<td class="tb_line" height="22">80</td>
<td class="tb_line5" height="22">70</td>
<td class="tb_line5" height="22">14×4.0</td>
<td class="tb_2" height="22">80</td></tr></tbody></table></span></div>
