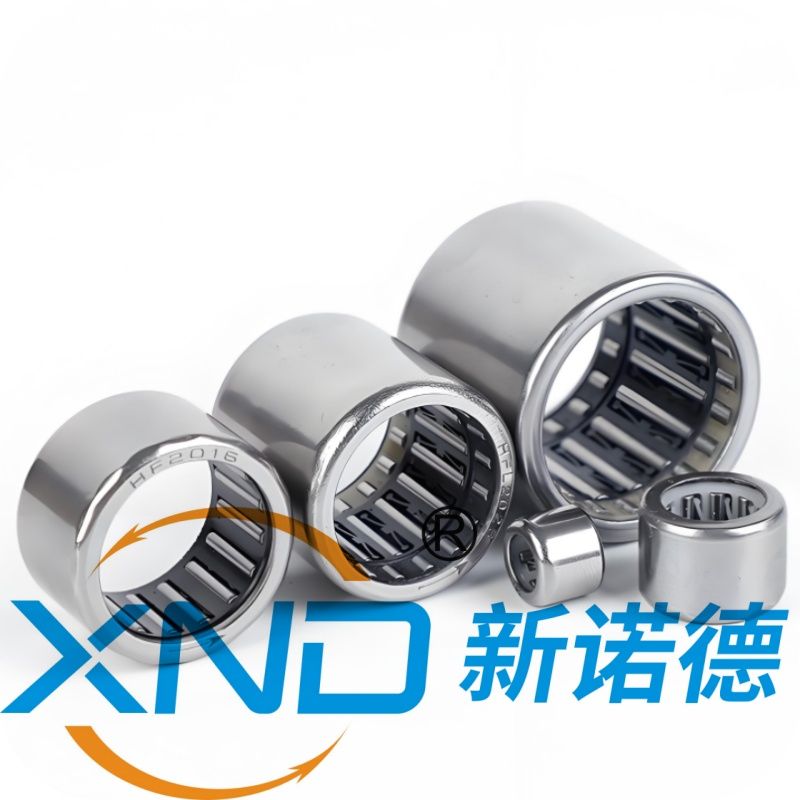

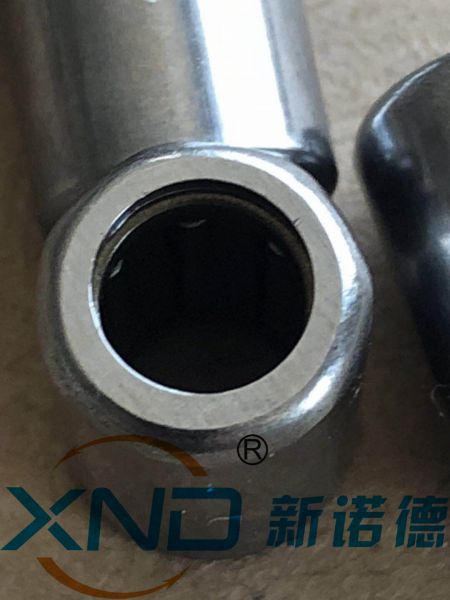

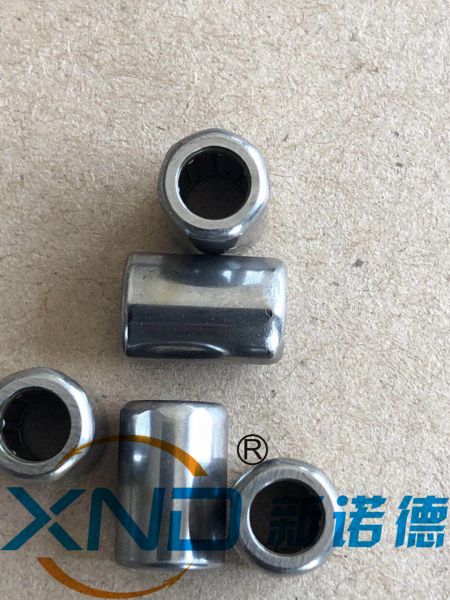

HFL型冲压外圈滚针离合器

型号： P5F48D2CAADAF0

销售价：
会员价： 最低起 更多会员价
市场价：
商品评分： (共0人评论)

数量： -+
我要询价

商品详情

品牌：
所属分类：滚柱式单向离合器
商品编号：G5F48D2CAADAAB

<div style="text-align: center;"><font face="黑体" size="6" color="#ff0000">HFL型 冲压外圈滚针离合器</font></div><div style="text-align: center;">

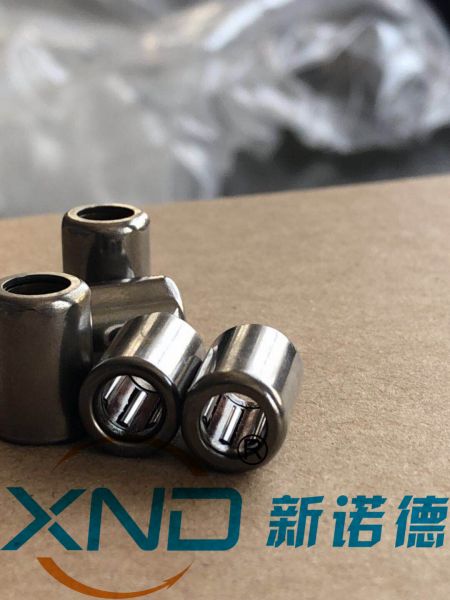

<img src="http://xinnuode.com/public/images/8f/36/3a/47c77c6c40326fde32671299270f8cac509329cb.jpg?1598607985#h"></div><p><font size="4">HFL型冲压外圈滚针离合器是一种带滚针轴承的外星轮式超越离合器。中间是滚针离合器，两端各放置一个滚针轴承。滚针是锁紧元件。锁紧精度高、空程角很小。为了传递较大的转矩，可并排应用两个离合器。用以承受一定的压力。常用于印刷机械、包装机械、食品机械、轻工机械及测试设备等。</font></p><p><br/></p><div><table class="tb_2" cellspacing="0" cellpadding="0" width="553" border="0">
<tbody>
<tr>
<td class="hei1_9" colspan="7">
<p>HFL 型超越离合器基本参数和主要尺寸</p>
</td>
<td class="bai_10" colspan="3">长度单位:mm</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="28">序<br/>号</td>
<td class="tb_line4" rowspan="2" width="104">型号</td>
<td class="tb_line2" height="20" width="60">公称<br/>转矩</td>
<td class="tb_line4" height="20" colspan="2">极限转速<br/>n(r/min)</td>
<td class="tb_line4" colspan="3">外形尺寸</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="36">轴径</td>
<td class="tb_line4" rowspan="2" width="61">
<p align="center">质量<br/>m( g)</p>
</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="44">轴 </td>
<td class="tb_line4" bgcolor="#ff7f00" width="42">外圈</td>
<td class="tb_line4" width="58">内径d</td>
<td class="tb_line4" width="60">外径D</td>
<td class="tb_line4" width="60">宽度L</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">HFL0822</td>
<td class="tb_line" height="22">3.15</td>
<td class="tb_line5" height="22">17000</td>
<td class="tb_line" height="22">12000</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">8</td>
<td class="tb_2" height="22">6.3</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">HFL1022</td>
<td class="tb_line" height="22">5.3</td>
<td class="tb_line5" height="22">14000</td>
<td class="tb_line" height="22">11000</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">10</td>
<td class="tb_2" height="22">7.4</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">HFL1226</td>
<td class="tb_line" height="22">12.2</td>
<td class="tb_line5" height="22">11000</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">12</td>
<td class="tb_2" height="22">18</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">HFL1426</td>
<td class="tb_line" height="22">17.3</td>
<td class="tb_line5" height="22">9500</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">14</td>
<td class="tb_2" height="22">20.3</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">HFL1626</td>
<td class="tb_line" height="22">20.5</td>
<td class="tb_line5" height="22">8500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line5" height="22">22</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">16</td>
<td class="tb_2" height="22">22</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">HFL1826</td>
<td class="tb_line" height="22">24.1</td>
<td class="tb_line5" height="22">7500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line5" height="22">24</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">18</td>
<td class="tb_2" height="22">24.4</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">HFL2026</td>
<td class="tb_line" height="22">28.5</td>
<td class="tb_line5" height="22">7000</td>
<td class="tb_line" height="22">6500</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">26</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">20</td>
<td class="tb_2" height="22">27</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">HFL2530</td>
<td class="tb_line" height="22">66</td>
<td class="tb_line5" height="22">5500</td>
<td class="tb_line" height="22">5500</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line" height="22">25</td>
<td class="tb_2" height="22">44</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">HFL3030</td>
<td class="tb_line" height="22">90</td>
<td class="tb_line5" height="22">4500</td>
<td class="tb_line" height="22">4500</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">37</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line" height="22">30</td>
<td class="tb_2" height="22">51</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">HFL3530</td>
<td class="tb_line" height="22">121</td>
<td class="tb_line5" height="22">3900</td>
<td class="tb_line" height="22">3900</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">42</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line" height="22">35</td>
<td class="tb_2" height="22">58</td></tr></tbody></table></div>
